Photoacoustic Infrared, Highly Selective, Most Sensitive (1ppm), 24-hour Refrigerant Leak Detection and Notification Refrigerant Leak Detection and Monitoring Systems

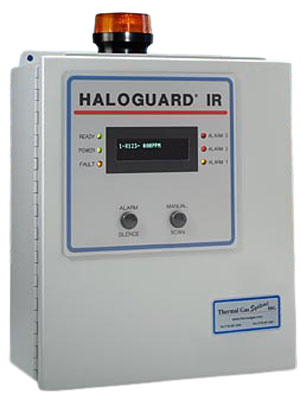

The HALOGUARD ® IR combines advanced microprocessor-based digital signal processing and a highly
selective and sensitive photo-acoustic infrared cell to provide the newest, most sensitive system for continuous monitoring of any refrigerant gas. The HALOGUARD® IR monitors single or multiple, local and remote locations and provides notification when gas concentration reaches preset alarm levels. Add individual, simultaneous monitoring of up to 3 different gases and up to 24 sample points by adding optional channel scanners and remote IR modules. Alarm relays and analog outputs are designed to activate remote devices or to interface with an energy management (EMS) or building automation (BAS) system.
Features
- Simple installation
- Easy field calibration
- Up to 500 ft. sample draw
- Three user alarms adjustable between 10 ppm & 100% of scale
- LCD shows PPM Concentration, Alarm, Test, Reset and Fault Diagnostics
- Three flashing alarm LEDs
- Fault, Ready & Power ON/OFF LEDs
- Analog output for BAS/EMS interface or data logging
- Four alarm relays for ventilation, damper or remote notification
- Alarm Test & Reset/Silence push buttons
- High-intensity audible alarm
- Rugged enclosure
Options & Accessories
- 2, 4 or 8-channel scanner
- Remote IR module
- Oxygen depletion sensor
- Amber strobe light alarm
- Remote strobe light & horn alarms
- Gas calibration kit
- NEMA 4/12 enclosure
Specifications
| Technology | Photoacoustic Infrared |
| Electrical Supply | 115-230v, 50-60 Hz, 65W |
| Fuse | 3A/240V, fast-acting |
| Output Signal | Std: 4x5A, dry contact relay SPDT Opt: 7x10A, dry contact relay SPDT Opt: 0-5VDC, 4-20mA analog |
| Sensitivity | 1 ppm |
| Resolution | 1 ppm |
| Measuring Range | 0-1000 ppm all refrigerants |
| Response Time | <1 minute per channel |
| Clearing Time | <3 minutes per channel |
| Maximum Sample Point Tubing Length |
150′ with standard performance 500′ optional where slower response is acceptable |
| Operating Conditions | 32°F to +120°F non-condensing |
| Enclosure: | Std: NEMA 250, 20 lbs. Opt: NEMA 4/12, 25 lbs. |
| Sample Rate | 1.0 lpm |
| Listed to UL 3111-1 and CAN/CSA-C22.2 No. 1010.1-92 | |
Haloguard IR is unconditionally guaranteed for one year from the date of shipment. Any device found defective in that period will be replaced free of charge.
